Model

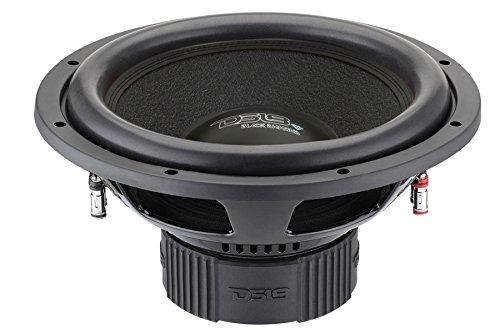

DS18 Car Audio BD-X154D
Rating
DIAM
15"
FS(Hz)
40.4
VAS(l)
56.8
QTS
1.26
PWR(W)
1400
SPL(dB)
85.8
IMP(Ohm)
4x2
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
40.4
Vas(l)
56.8
Qts
1.259
Qms
7.353
Qes
1.519
Bl(Tm)
10.1
Mms(gr)
261
Cms(mm/N)
0.06
Rms(kg/s)
8.99
Le(mH)
0
Re(Ohm)
2.3
Sd(sq.mm)
81729
Vd(l)
1.863
X-max(mm)
23
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1400
RMS Power(W.)
550
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.39
Total Diameter (mm)
0
Cutout Diameter (mm)
329
Mounting Depth (mm)
165
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
