Model

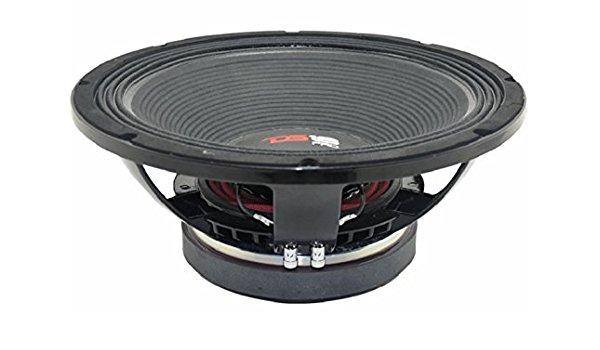

DS18 Car Audio DS18 PRO BX-15
Rating
DIAM
15"
FS(Hz)
42
VAS(l)
85
QTS
0.34
PWR(W)
3600
SPL(dB)
93.8
IMP(Ohm)
8x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
42
Vas(l)
85
Qts
0.336
Qms
2.15
Qes
0.398
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
6.2
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3600
RMS Power(W.)
1800
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.52
Sensitivity(dB) 1-W
93.8
Sensitivity(dB) 2.8-V
94.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
