Model

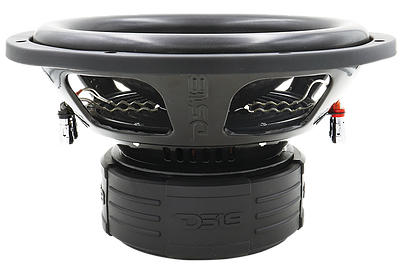

DS18 Car Audio ELITE Z10
Rating
DIAM
10"
FS(Hz)
41
VAS(l)
10.8
QTS
0.83
PWR(W)
1500
SPL(dB)
80.8
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
41
Vas(l)
10.8
Qts
0.826
Qms
5.726
Qes
0.966
Bl(Tm)
12.9
Mms(gr)
205
Cms(mm/N)
0.7
Rms(kg/s)
9.243
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
10440
Vd(l)
0.287
X-max(mm)
28
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1500
RMS Power(W.)
750
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
80.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.41
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
147
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
