Model

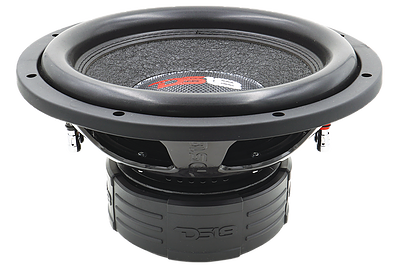

DS18 Car Audio ELITE Z12
Rating
DIAM
12"
FS(Hz)
41
VAS(l)
24.2
QTS
0.68
PWR(W)
1600
SPL(dB)
85.3
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
41
Vas(l)
24.2
Qts
0.684
Qms
6.73
Qes
0.762
Bl(Tm)
12.2
Mms(gr)
224
Cms(mm/N)
0.07
Rms(kg/s)
8.589
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
49362
Vd(l)
1.431
X-max(mm)
29
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.3
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.98
Total Diameter (mm)
0
Cutout Diameter (mm)
286
Mounting Depth (mm)
160
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
