Model

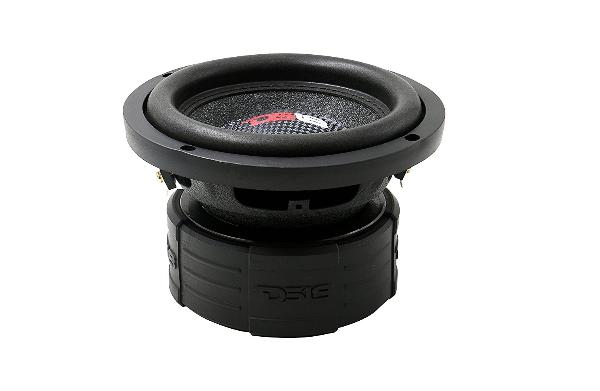

DS18 Car Audio ELITE Z6
Rating
DIAM
6"
FS(Hz)
61.5
VAS(l)
2.3
QTS
0.53
PWR(W)
600
SPL(dB)
86.5
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
61.5
Vas(l)
2.3
Qts
0.527
Qms
5.124
Qes
0.587
Bl(Tm)
8.4
Mms(gr)
63
Cms(mm/N)
0.107
Rms(kg/s)
4.717
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
123
Vd(l)
0.002
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
148
Mounting Depth (mm)
99
Magnet Diameter (mm)
126
Optimum Enclosures
Enclosures
Vented, BP6
