Model

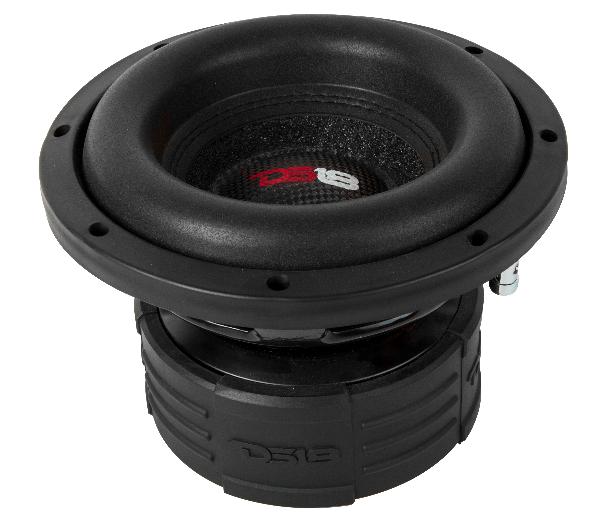

DS18 Car Audio ELITE Z8
Rating
DIAM
8"
FS(Hz)
58.5
VAS(l)
2.6
QTS
0.74
PWR(W)
900
SPL(dB)
79.8
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
58.5
Vas(l)
2.6
Qts
0.74
Qms
6.398
Qes
0.837
Bl(Tm)
9.8
Mms(gr)
134
Cms(mm/N)
0.06
Rms(kg/s)
7.7
Le(mH)
0
Re(Ohm)
1.6
Sd(sq.mm)
17412
Vd(l)
0.444
X-max(mm)
26
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
900
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
79.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0.5
Total Diameter (mm)
0
Cutout Diameter (mm)
185
Mounting Depth (mm)
132
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
