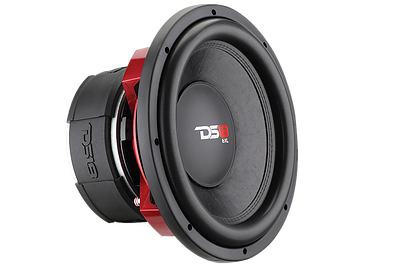

DS18 Car Audio  EXL B124D
DS18 Car Audio  EXL B124D
Model

DS18 Car Audio EXL B124D

Rating
DIAM
12"
FS(Hz)
43.7
VAS(l)
21.9
QTS
0.44
PWR(W)
2000
SPL(dB)
87.6
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
43.7
Vas(l)
21.9
Qts
0.437
Qms
6.044
Qes
0.471
Bl(Tm)
15.8
Mms(gr)
225
Cms(mm/N)
0.06
Rms(kg/s)
10.206
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
50754
Vd(l)
1.624
X-max(mm)
32
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
2000
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.6
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
292
Mounting Depth (mm)
201
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
