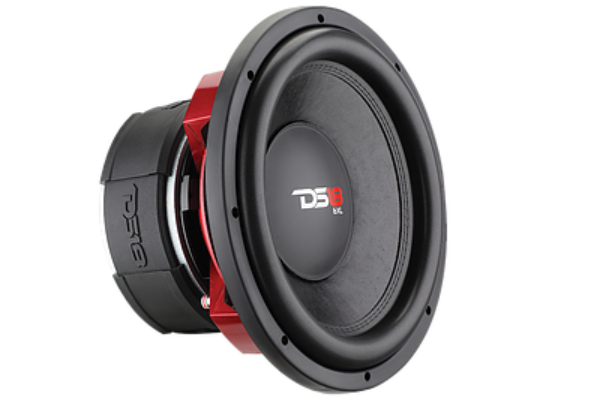

DS18 Car Audio  EXL-B152D
DS18 Car Audio  EXL-B152D
Model

DS18 Car Audio EXL-B152D

Rating
DIAM
15"
FS(Hz)
39
VAS(l)
59.5
QTS
0.47
PWR(W)
3000
SPL(dB)
90.3
IMP(Ohm)
2x2
avb
NOPROD

Thiele-Small Parameters

Fs(Hz)
39
Vas(l)
59.5
Qts
0.473
Qms
6.791
Qes
0.508
Bl(Tm)
11.5
Cms(mm/N)
0.06
Rms(kg/s)
9.608
Le(mH)
0
Mms(gr)
266
Vd(l)
2.676
Sd(sq.mm)
83633
X-max(mm)
32
X-mech(mm)
0
Re(Ohm)
1

General Parameters

Diameter (inch)
15
Max Power(W.)
3000
RMS Power(W.)
1800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
90.3
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
3.96
Total Diameter (mm)
0
Cutout Diameter (mm)
357
Mounting Depth (mm)
225
Magnet Diameter (mm)
196

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
