Model

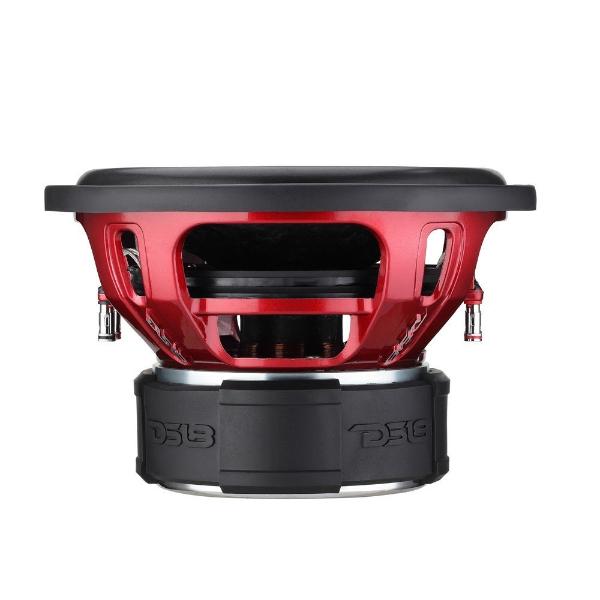

DS18 Car Audio EXL X15.2D
Rating
DIAM
15"
FS(Hz)
50.1
VAS(l)
24.8
QTS
0.51
PWR(W)
2500
SPL(dB)
92
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
50.1
Vas(l)
24.8
Qts
0.513
Qms
5.842
Qes
0.562
Bl(Tm)
14.9
Mms(gr)
374
Cms(mm/N)
0.027
Rms(kg/s)
20.135
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
804
Vd(l)
0.024
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
92
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
355
Mounting Depth (mm)
205
Magnet Diameter (mm)
196
Optimum Enclosures
Enclosures
Vented, BP6
