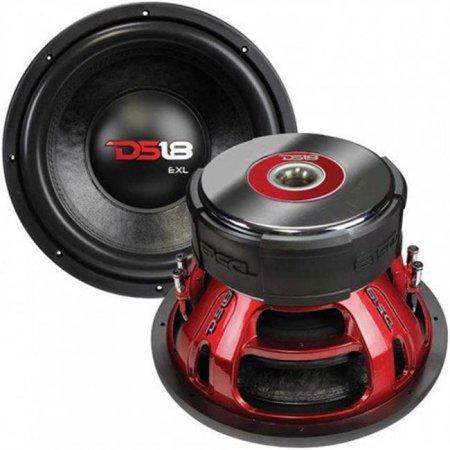

DS18 Car Audio  EXL X15.4D
DS18 Car Audio  EXL X15.4D
Model

DS18 Car Audio EXL X15.4D

Rating
DIAM
15"
FS(Hz)
52.3
VAS(l)
25.5
QTS
0.49
PWR(W)
2500
SPL(dB)
89.9
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
52.3
Vas(l)
25.5
Qts
0.495
Qms
6.2
Qes
0.572
Bl(Tm)
15.9
Mms(gr)
359
Cms(mm/N)
0.026
Rms(kg/s)
18.99
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
80400
Vd(l)
2.412
X-max(mm)
30
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
2500
RMS Power(W.)
1250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.62
Sensitivity(dB) 1-W
89.9
Sensitivity(dB) 2.8-V
93.4

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
355
Mounting Depth (mm)
205
Magnet Diameter (mm)
196

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
