Model

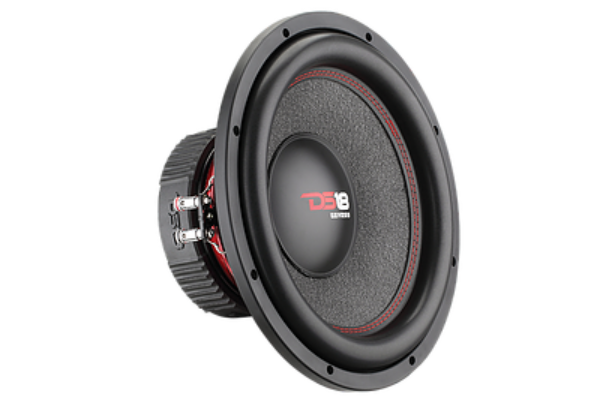

DS18 Car Audio GEN-124D
Rating
DIAM
12"
FS(Hz)
45.8
VAS(l)
31.5
QTS
0.67
PWR(W)
900
SPL(dB)
88
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
45.8
Vas(l)
31.5
Qts
0.667
Qms
6.448
Qes
0.744
Bl(Tm)
9.7
Mms(gr)
139
Cms(mm/N)
0.09
Rms(kg/s)
6.184
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
49646
Vd(l)
0.968
X-max(mm)
20
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
900
RMS Power(W.)
450
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.26
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
