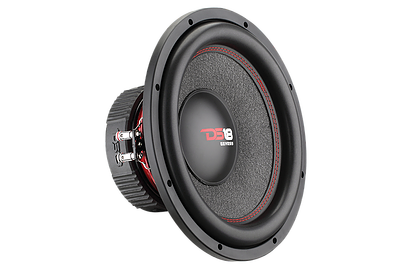

DS18 Car Audio  GEN-154D
DS18 Car Audio  GEN-154D
Model

DS18 Car Audio GEN-154D

Rating
DIAM
15"
FS(Hz)
43.1
VAS(l)
56.8
QTS
1
PWR(W)
1000
SPL(dB)
87.8
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
43.1
Vas(l)
56.8
Qts
1.002
Qms
7.728
Qes
1.151
Bl(Tm)
9.8
Mms(gr)
229
Cms(mm/N)
0.06
Rms(kg/s)
8.026
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
81685
Vd(l)
1.593
X-max(mm)
20
X-mech(mm)
0

General Parameters

Diameter (inch)
15
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.8
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
3.68
Total Diameter (mm)
0
Cutout Diameter (mm)
357
Mounting Depth (mm)
174
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
