Model

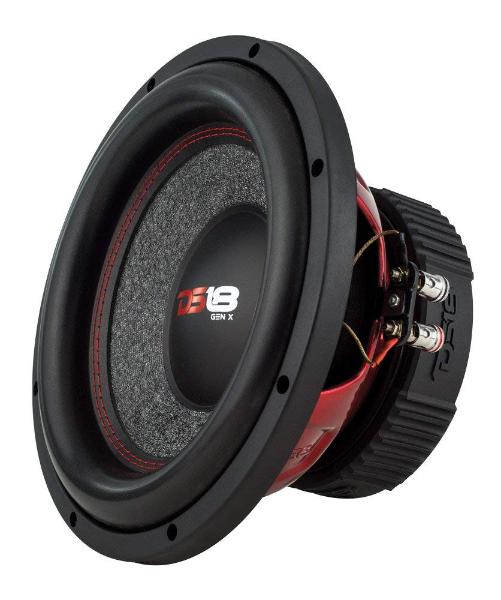

DS18 Car Audio GEN-X104D
Rating
DIAM
10"
FS(Hz)
54.6
VAS(l)
10.7
QTS
0.55
PWR(W)
800
SPL(dB)
86.3
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
54.6
Vas(l)
10.7
Qts
0.551
Qms
5.2
Qes
0.616
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1.6
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.27
Sensitivity(dB) 1-W
86.3
Sensitivity(dB) 2.8-V
93.3
Mounting Information
Speaker Displacement (l)
1.13
Total Diameter (mm)
260
Cutout Diameter (mm)
234
Mounting Depth (mm)
137
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
