Model

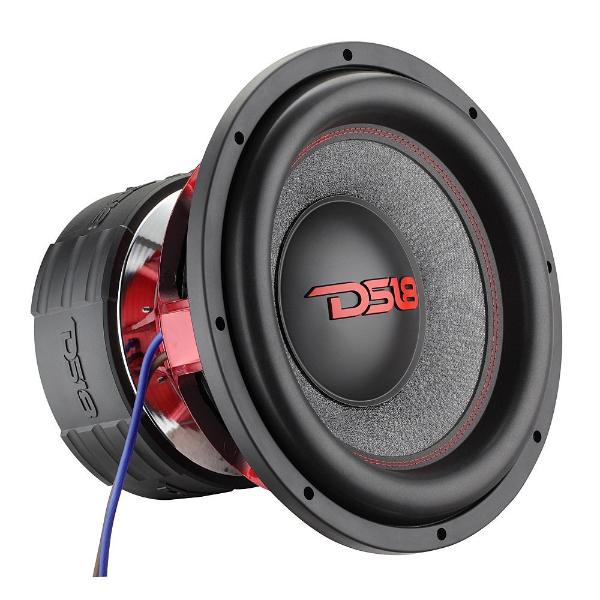

DS18 Car Audio HOOLIGAN 12.2D
Rating
DIAM
12"
FS(Hz)
41
VAS(l)
17.2
QTS
0.87
PWR(W)
6000
SPL(dB)
82.8
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
41
Vas(l)
17.2
Qts
0.871
Qms
6.478
Qes
1.006
Bl(Tm)
7.9
Mms(gr)
248
Cms(mm/N)
0.06
Rms(kg/s)
0.233
Le(mH)
0
Re(Ohm)
1
Sd(sq.mm)
45011
Vd(l)
2.543
X-max(mm)
57
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
6000
RMS Power(W.)
4000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
82.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
3.11
Total Diameter (mm)
0
Cutout Diameter (mm)
279
Mounting Depth (mm)
238
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
