Model

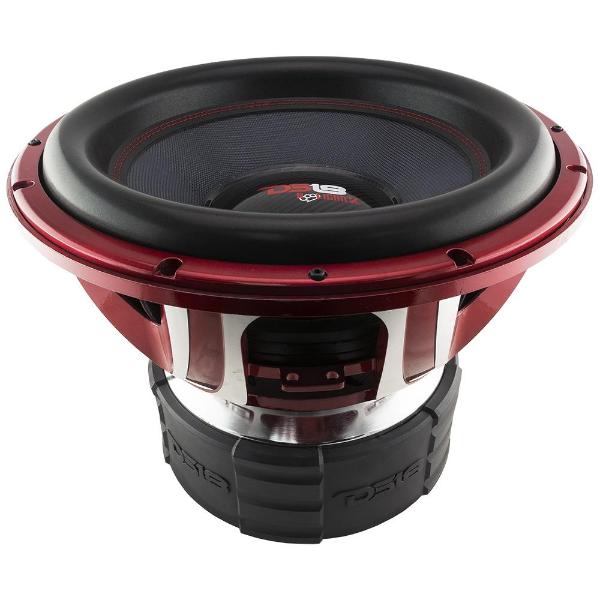

DS18 Car Audio HOOLIGAN X 15.2D
Rating
DIAM
15"
FS(Hz)
31.6
VAS(l)
45.1
QTS
0.47
PWR(W)
6000
SPL(dB)
86.1
IMP(Ohm)
2.2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.6
Vas(l)
45.1
Qts
0.474
Qms
4.387
Qes
0.531
Bl(Tm)
12.7
Mms(gr)
264
Cms(mm/N)
0.096
Rms(kg/s)
11.95
Le(mH)
0
Re(Ohm)
1.6
Sd(sq.mm)
79092
Vd(l)
4.666
X-max(mm)
59
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
6000
RMS Power(W.)
4000
Number of Coils
2
Impedance Z-Nom(Ohm)
2.2
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
93
Mounting Information
Speaker Displacement (l)
5.94
Total Diameter (mm)
0
Cutout Diameter (mm)
357
Mounting Depth (mm)
275
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
