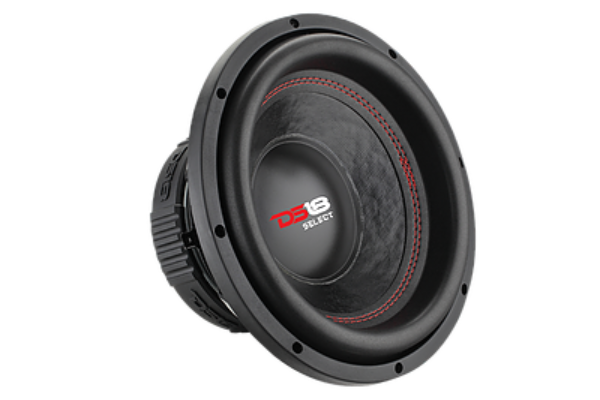

DS18 Car Audio  SLC-10S
DS18 Car Audio  SLC-10S
Model

DS18 Car Audio SLC-10S

Rating
DIAM
10"
FS(Hz)
55.2
VAS(l)
11.6
QTS
0.92
PWR(W)
440
SPL(dB)
84.7
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
55.2
Vas(l)
11.6
Qts
0.922
Qms
8.697
Qes
1.031
Bl(Tm)
12.1
Mms(gr)
120
Cms(mm/N)
0.07
Rms(kg/s)
4.773
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
34197
Vd(l)
0.564
X-max(mm)
17
X-mech(mm)
0

General Parameters

Diameter (inch)
10
Max Power(W.)
440
RMS Power(W.)
220
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.7
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1.13
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
113
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
