Model

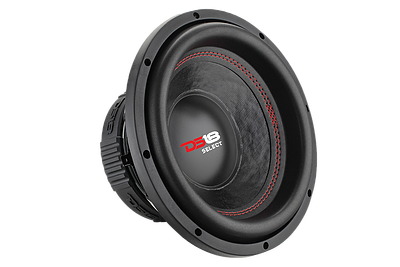

DS18 Car Audio SLC-12S
Rating
DIAM
12"
FS(Hz)
54.5
VAS(l)
29
QTS
1.04
PWR(W)
500
SPL(dB)
87.9
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
54.5
Vas(l)
29
Qts
1.037
Qms
8.419
Qes
1.182
Bl(Tm)
10.8
Mms(gr)
117
Cms(mm/N)
0.07
Rms(kg/s)
4.756
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
54075
Vd(l)
0.892
X-max(mm)
17
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.69
Total Diameter (mm)
0
Cutout Diameter (mm)
277
Mounting Depth (mm)
139
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
