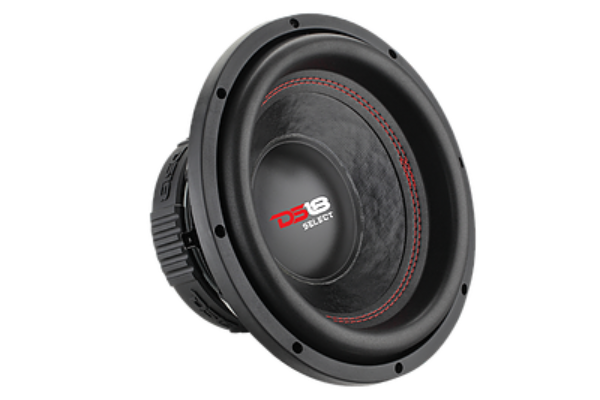

DS18 Car Audio  SLC-8S
DS18 Car Audio  SLC-8S
Model

DS18 Car Audio SLC-8S

Rating
DIAM
8"
FS(Hz)
63.9
VAS(l)
3.8
QTS
0.91
PWR(W)
400
SPL(dB)
81.8
IMP(Ohm)
4x1
avb
PROD

Thiele-Small Parameters

Fs(Hz)
63.9
Vas(l)
3.8
Qts
0.912
Qms
8.719
Qes
1.019
Bl(Tm)
11.4
Mms(gr)
90
Cms(mm/N)
0.07
Rms(kg/s)
4.134
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
19564
Vd(l)
0.323
X-max(mm)
17
X-mech(mm)
0

General Parameters

Diameter (inch)
8
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.8
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0.56
Total Diameter (mm)
0
Cutout Diameter (mm)
183
Mounting Depth (mm)
98
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
