Model

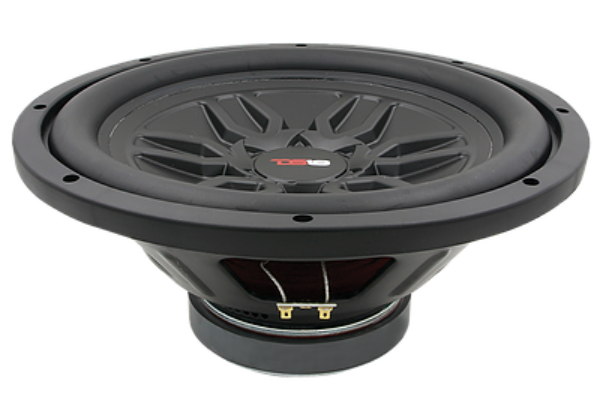

DS18 Car Audio SLC-MD12.4D
Rating
DIAM
12"
FS(Hz)
31.6
VAS(l)
119.2
QTS
1.02
PWR(W)
1000
SPL(dB)
86.8
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.6
Vas(l)
119.2
Qts
1.017
Qms
6.301
Qes
1.213
Bl(Tm)
4.7
Mms(gr)
77
Cms(mm/N)
0.33
Rms(kg/s)
2.416
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
50471
Vd(l)
0.696
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.98
Total Diameter (mm)
0
Cutout Diameter (mm)
277
Mounting Depth (mm)
139
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
