Model

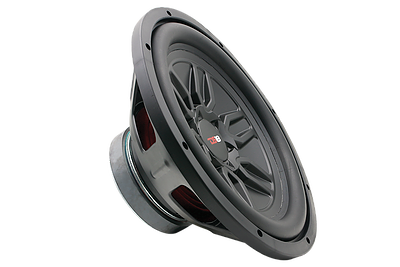

DS18 Car Audio SLC-MD12
Rating
DIAM
12"
FS(Hz)
30.3
VAS(l)
133.1
QTS
0.92
PWR(W)
1000
SPL(dB)
87.1
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30.3
Vas(l)
133.1
Qts
0.923
Qms
6.5
Qes
1.088
Bl(Tm)
6.8
Mms(gr)
76
Cms(mm/N)
0.36
Rms(kg/s)
2.225
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
51052
Vd(l)
0.705
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.98
Total Diameter (mm)
0
Cutout Diameter (mm)
277
Mounting Depth (mm)
139
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
