Model

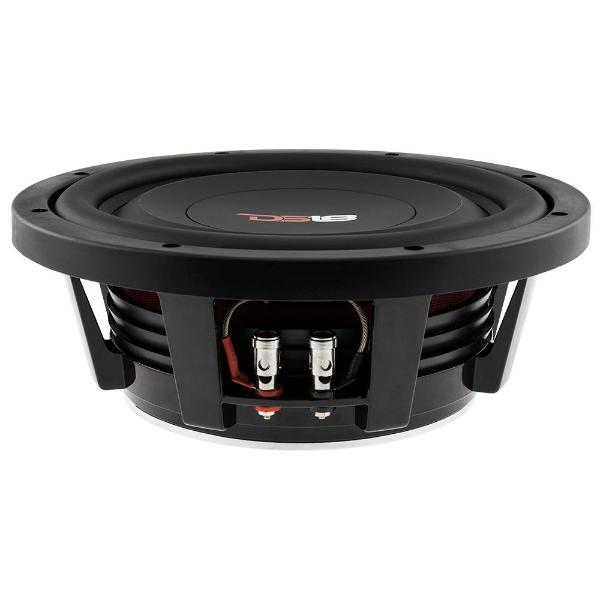

DS18 Car Audio SW10S4
Rating
DIAM
10"
FS(Hz)
54.5
VAS(l)
13.6
QTS
0.89
PWR(W)
100
SPL(dB)
85.2
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
54.5
Vas(l)
13.6
Qts
0.891
Qms
7.528
Qes
1.011
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
100
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
234
Mounting Depth (mm)
88
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
