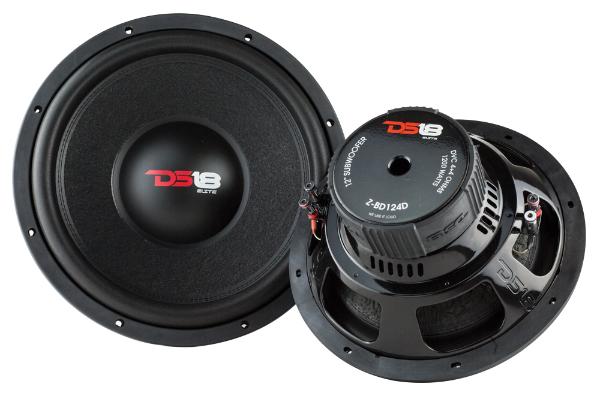

DS18 Car Audio  Z-BD124D
DS18 Car Audio  Z-BD124D
Model

DS18 Car Audio Z-BD124D

Rating
DIAM
12"
FS(Hz)
42
VAS(l)
24
QTS
0.72
PWR(W)
1200
SPL(dB)
87
IMP(Ohm)
4x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
42
Vas(l)
24
Qts
0.72
Qms
6.187
Qes
0.815
Bl(Tm)
10.5
Mms(gr)
199
Cms(mm/N)
0.07
Rms(kg/s)
8.473
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
491
Vd(l)
0.01
X-max(mm)
20
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
274
Mounting Depth (mm)
143
Magnet Diameter (mm)
150

Optimum Enclosures

Enclosures
Closed, BP4

Speaker response
