Model

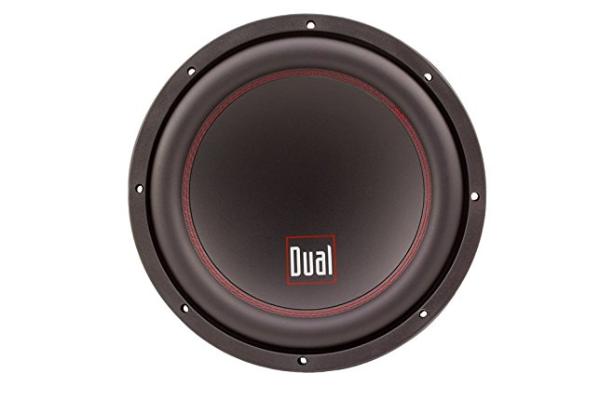

Dual Electronic Corporation DSW101D
Rating
DIAM
10"
FS(Hz)
29.7
VAS(l)
79.9
QTS
0.59
PWR(W)
700
SPL(dB)
86.8
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
29.7
Vas(l)
79.9
Qts
0.59
Qms
4.16
Qes
0.69
Bl(Tm)
8.9
Mms(gr)
73
Cms(mm/N)
0.393
Rms(kg/s)
0
Le(mH)
2.31
Re(Ohm)
4
Sd(sq.mm)
37854
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
700
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
89.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
