Model

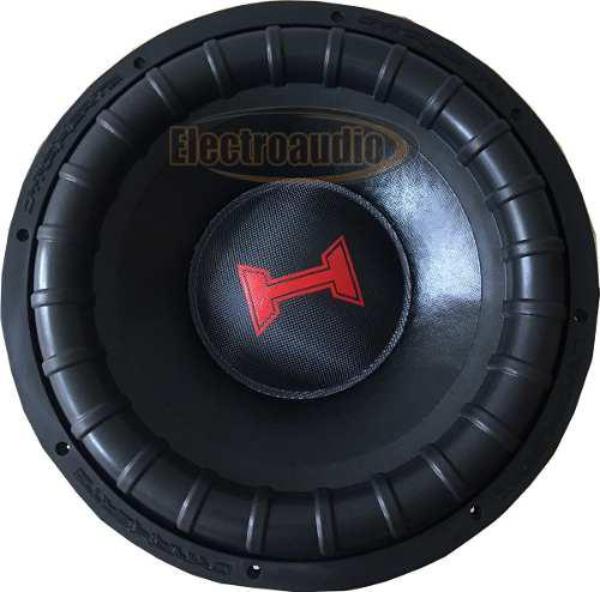

Dynahertz H415
Rating
DIAM
15"
FS(Hz)
31.4
VAS(l)
69.3
QTS
0.49
PWR(W)
3200
SPL(dB)
87.2
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
31.4
Vas(l)
69.3
Qts
0.49
Qms
5
Qes
0.62
Bl(Tm)
22.1
Mms(gr)
321
Cms(mm/N)
0.08
Rms(kg/s)
12.57
Le(mH)
9.05
Re(Ohm)
4.1
Sd(sq.mm)
77931
Vd(l)
2.338
X-max(mm)
30
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3200
RMS Power(W.)
1600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.33
Sensitivity(dB) 1-W
87.2
Sensitivity(dB) 2.8-V
90.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
