Model

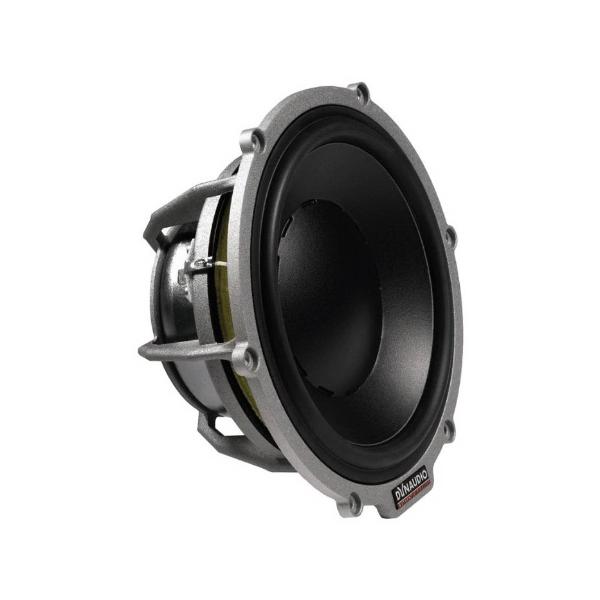

Dynaudio ESOTAR2 650
Rating
DIAM
6"
FS(Hz)
49.6
VAS(l)
10.5
QTS
0.44
PWR(W)
1000
SPL(dB)
86.2
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
49.6
Vas(l)
10.5
Qts
0.44
Qms
6.2
Qes
0.47
Bl(Tm)
6.7
Mms(gr)
20
Cms(mm/N)
0.515
Rms(kg/s)
1.005
Le(mH)
0
Re(Ohm)
3.4
Sd(sq.mm)
12000
Vd(l)
0.108
X-max(mm)
9
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
1000
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
136
Mounting Depth (mm)
67
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
