Model

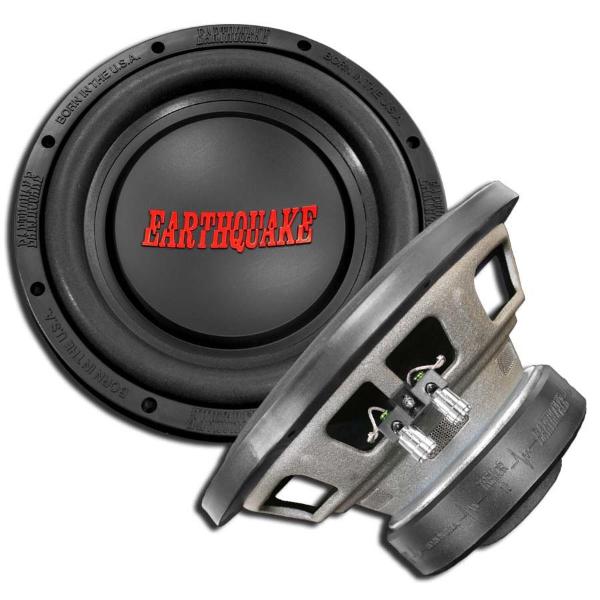

Earthquake DB-10
Rating
DIAM
10"
FS(Hz)
26
VAS(l)
30.5
QTS
0.7
PWR(W)
800
SPL(dB)
87
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
26
Vas(l)
30.5
Qts
0.7
Qms
8.3
Qes
0.76
Bl(Tm)
11.1
Mms(gr)
185
Cms(mm/N)
0.203
Rms(kg/s)
3.63
Le(mH)
4
Re(Ohm)
3.2
Sd(sq.mm)
49062
Vd(l)
0.934
X-max(mm)
19
X-mech(mm)
25
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.07
Sensitivity(dB) 1-W
87
Sensitivity(dB) 2.8-V
83.5
Mounting Information
Speaker Displacement (l)
0.62
Total Diameter (mm)
257
Cutout Diameter (mm)
233
Mounting Depth (mm)
123
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
Closed, BP4
