Model

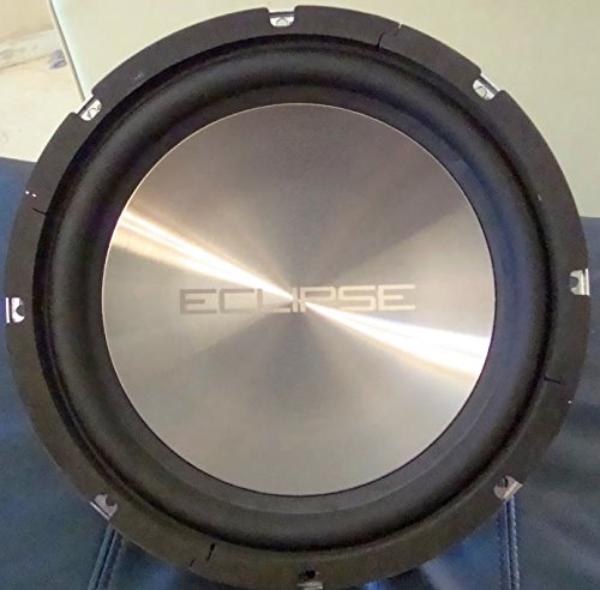

Eclipse SW6223
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
12"
FS(Hz)
29
VAS(l)
70
QTS
0.78
PWR(W)
500
SPL(dB)
88
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29
Vas(l)
70
Qts
0.78
Qms
13.8
Qes
1.02
Bl(Tm)
0
Mms(gr)
33
Cms(mm/N)
0.91
Rms(kg/s)
13.79
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
23289
Vd(l)
0.442
X-max(mm)
19
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.16
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
