Model

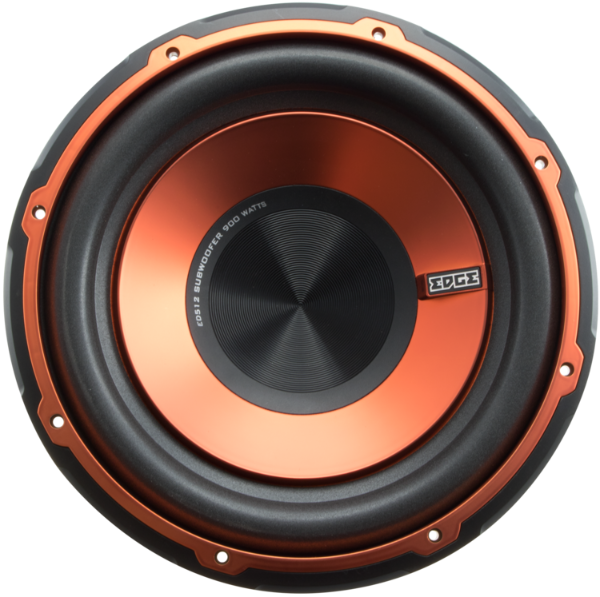

EDGE ED512-E2
Rating
DIAM
12"
FS(Hz)
34.1
VAS(l)
30.8
QTS
0.9
PWR(W)
900
SPL(dB)
82.5
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34.1
Vas(l)
30.8
Qts
0.9
Qms
6.251
Qes
1.051
Bl(Tm)
10.4
Mms(gr)
135
Cms(mm/N)
0.161
Rms(kg/s)
4.637
Le(mH)
0
Re(Ohm)
3.9
Sd(sq.mm)
51470
Vd(l)
0.36
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
900
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.11
Sensitivity(dB) 1-W
82.5
Sensitivity(dB) 2.8-V
85.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
276
Mounting Depth (mm)
125
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
