Model

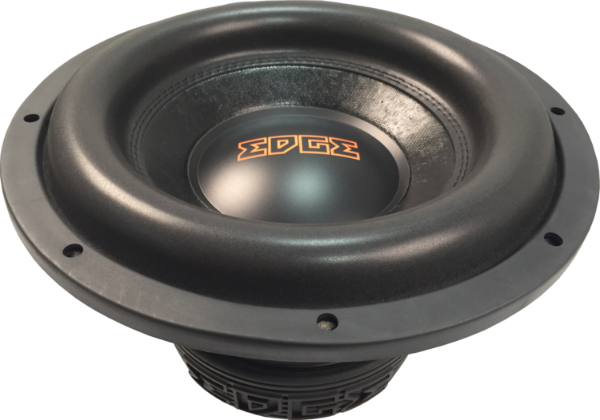

EDGE EDB12D2-E7
Rating
DIAM
12"
FS(Hz)
30
VAS(l)
39.5
QTS
0.48
PWR(W)
1400
SPL(dB)
84.9
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
39.5
Qts
0.48
Qms
5.8
Qes
0.53
Bl(Tm)
17.3
Mms(gr)
221
Cms(mm/N)
0.33
Rms(kg/s)
7.19
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
47000
Vd(l)
0.479
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1400
RMS Power(W.)
700
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.19
Sensitivity(dB) 1-W
84.9
Sensitivity(dB) 2.8-V
88.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
