Model

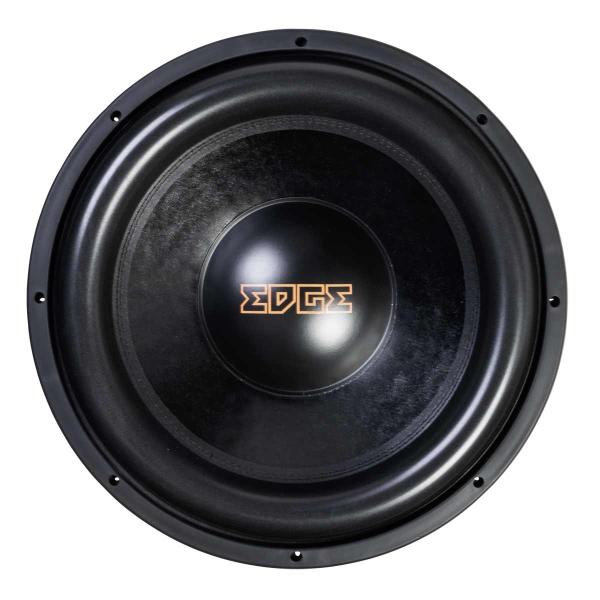

EDGE EDGE EDB15D2X-E7
Rating
DIAM
15"
FS(Hz)
25.5
VAS(l)
94
QTS
0.39
PWR(W)
2200
SPL(dB)
87.4
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
25.5
Vas(l)
94
Qts
0.39
Qms
4.27
Qes
0.429
Bl(Tm)
22.2
Mms(gr)
330
Cms(mm/N)
0.118
Rms(kg/s)
12.39
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
75000
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
2200
RMS Power(W.)
1100
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.35
Sensitivity(dB) 1-W
87.4
Sensitivity(dB) 2.8-V
90.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
