Model

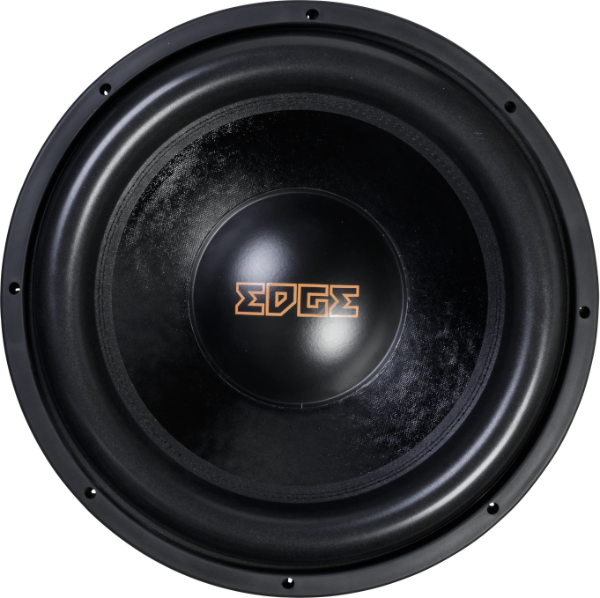

EDGE EDGE EDS15D1-E7
Rating
DIAM
15"
FS(Hz)
32.3
VAS(l)
50.8
QTS
0.28
PWR(W)
3600
SPL(dB)
89.3
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.3
Vas(l)
50.8
Qts
0.28
Qms
3.55
Qes
0.304
Bl(Tm)
22.4
Mms(gr)
380
Cms(mm/N)
0.064
Rms(kg/s)
21.74
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
74811
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3600
RMS Power(W.)
1800
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.54
Sensitivity(dB) 1-W
89.3
Sensitivity(dB) 2.8-V
95.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
