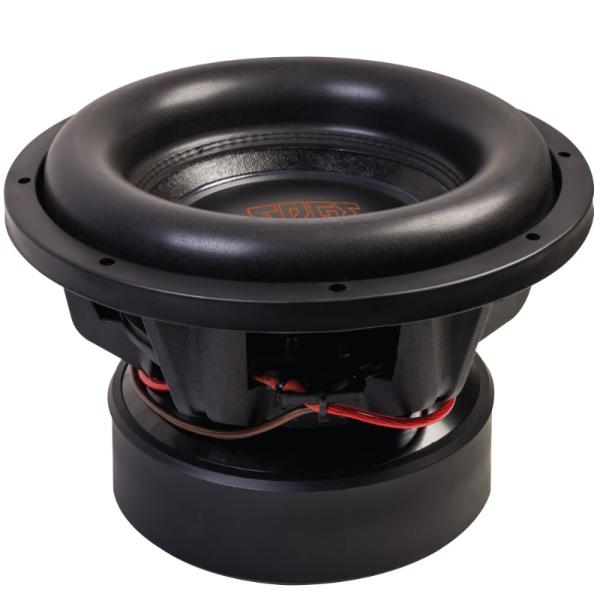

EDGE EDP122-E6
EDGE EDP122-E6
Model

EDGE EDP122-E6

Rating
DIAM
12"
FS(Hz)
49.5
VAS(l)
9.7
QTS
0.46
PWR(W)
7500
SPL(dB)
85.5
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
49.5
Vas(l)
9.7
Qts
0.464
Qms
5.7
Qes
0.506
Bl(Tm)
27.2
Mms(gr)
334
Cms(mm/N)
0.031
Rms(kg/s)
18.36
Le(mH)
0
Re(Ohm)
3.6
Sd(sq.mm)
47144
Vd(l)
1.037
X-max(mm)
22
X-mech(mm)
45

General Parameters

Diameter (inch)
12
Max Power(W.)
7500
RMS Power(W.)
2500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.2
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
89

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
322
Cutout Diameter (mm)
203
Mounting Depth (mm)
298
Magnet Diameter (mm)
226

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
