Model

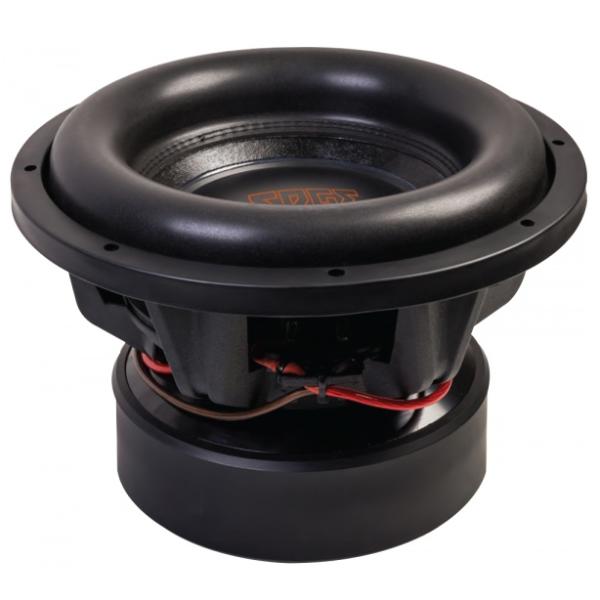

EDGE EDP122SPL-E6
Rating
DIAM
12"
FS(Hz)
37.5
VAS(l)
17
QTS
0.54
PWR(W)
4500
SPL(dB)
83.1
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37.5
Vas(l)
17
Qts
0.539
Qms
6.667
Qes
0.667
Bl(Tm)
22
Mms(gr)
334
Cms(mm/N)
0.054
Rms(kg/s)
11.819
Le(mH)
0
Re(Ohm)
4.1
Sd(sq.mm)
47142
Vd(l)
1.744
X-max(mm)
37
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
4500
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.13
Sensitivity(dB) 1-W
83.1
Sensitivity(dB) 2.8-V
86
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
323
Cutout Diameter (mm)
0
Mounting Depth (mm)
165
Magnet Diameter (mm)
188
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
