Model

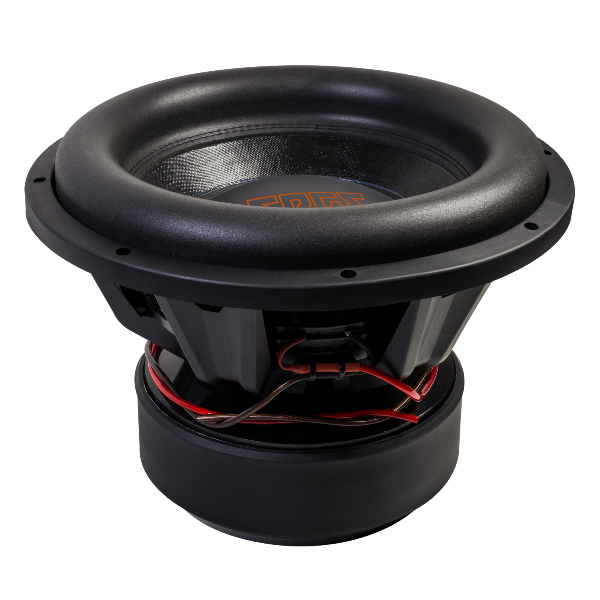

EDGE EDP152SPL-E6
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
15"
FS(Hz)
40.2
VAS(l)
24.7
QTS
0.5
PWR(W)
12000
SPL(dB)
86.6
IMP(Ohm)
2x2
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
40.2
Vas(l)
24.7
Qts
0.499
Qms
6.1
Qes
0.543
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
50
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
12000
RMS Power(W.)
4000
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.6
Sensitivity(dB) 2.8-V
92.6
Mounting Information
Speaker Displacement (l)
4.8
Total Diameter (mm)
356
Cutout Diameter (mm)
0
Mounting Depth (mm)
300
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
