Model

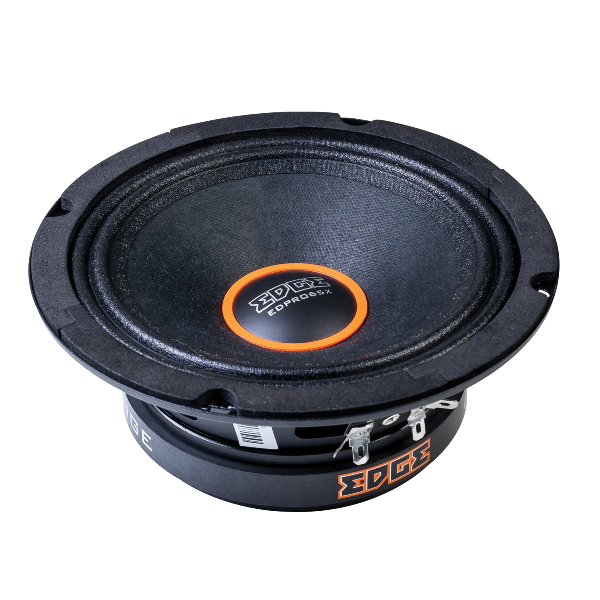

EDGE EDPRO65X
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
16"
FS(Hz)
170.2
VAS(l)
3.6
QTS
1.48
PWR(W)
260
SPL(dB)
91.6
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
170.2
Vas(l)
3.6
Qts
1.476
Qms
6.6
Qes
1.901
Bl(Tm)
4.2
Mms(gr)
8
Cms(mm/N)
0.115
Rms(kg/s)
1.23
Le(mH)
0
Re(Ohm)
4.1
Sd(sq.mm)
14960
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
16
Max Power(W.)
260
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.91
Sensitivity(dB) 1-W
91.6
Sensitivity(dB) 2.8-V
94.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
