Model

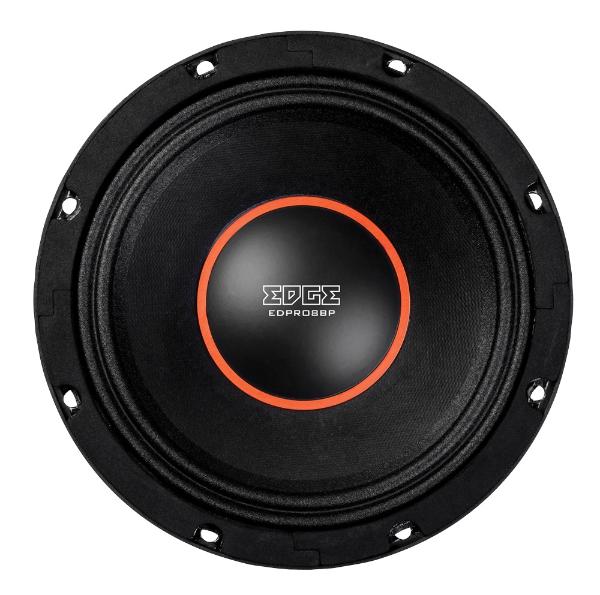

EDGE EDPRO8BP-E8
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
8"
FS(Hz)
103.7
VAS(l)
5.7
QTS
0.76
PWR(W)
500
SPL(dB)
90.7
IMP(Ohm)
4x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
103.7
Vas(l)
5.7
Qts
0.76
Qms
9.8
Qes
0.82
Bl(Tm)
8.3
Mms(gr)
26
Cms(mm/N)
0.09
Rms(kg/s)
1.75
Le(mH)
0
Re(Ohm)
3.3
Sd(sq.mm)
21132
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.75
Sensitivity(dB) 1-W
90.7
Sensitivity(dB) 2.8-V
94.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
183
Mounting Depth (mm)
82
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
