Model

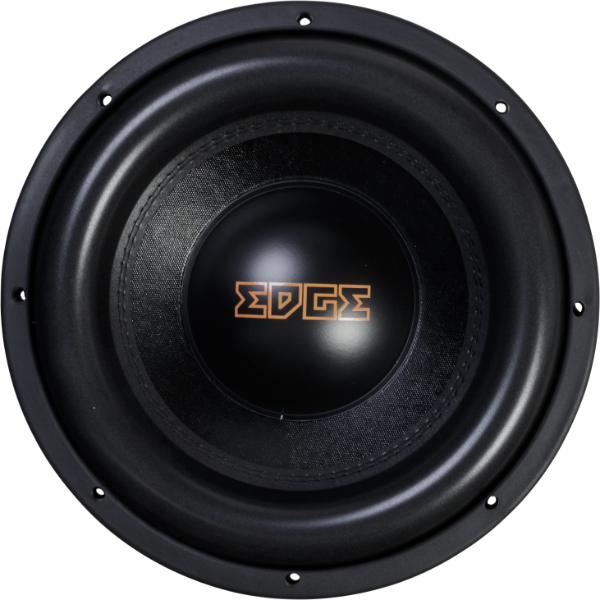

EDGE EDS12D1-E7
Rating
DIAM
12"
FS(Hz)
37.5
VAS(l)
17.5
QTS
0.28
PWR(W)
3000
SPL(dB)
86.7
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
37.5
Vas(l)
17.5
Qts
0.28
Qms
3.87
Qes
0.302
Bl(Tm)
22.3
Mms(gr)
322
Cms(mm/N)
0.056
Rms(kg/s)
19.59
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
47000
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.29
Sensitivity(dB) 1-W
86.7
Sensitivity(dB) 2.8-V
92.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
