Model

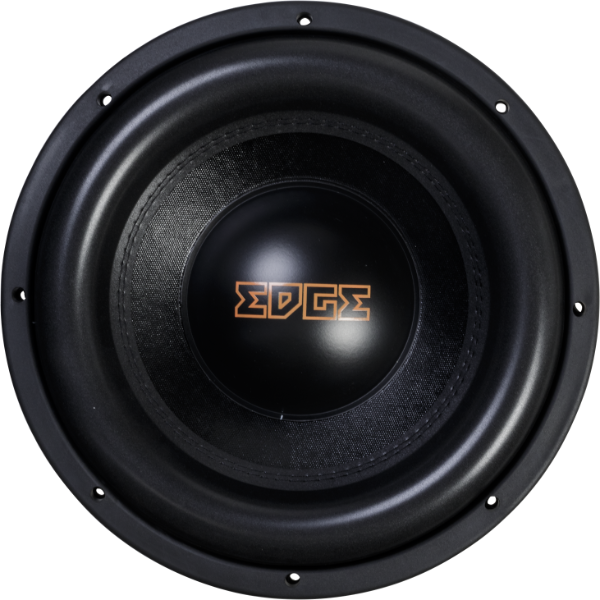

EDGE EDS12D2-E7
Rating
DIAM
12"
FS(Hz)
38.9
VAS(l)
16.2
QTS
0.31
PWR(W)
3000
SPL(dB)
86.3
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
38.9
Vas(l)
16.2
Qts
0.31
Qms
3.64
Qes
0.339
Bl(Tm)
22.3
Mms(gr)
322
Cms(mm/N)
0.052
Rms(kg/s)
21.61
Le(mH)
0
Re(Ohm)
2.1
Sd(sq.mm)
47000
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.27
Sensitivity(dB) 1-W
86.3
Sensitivity(dB) 2.8-V
92.1
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
