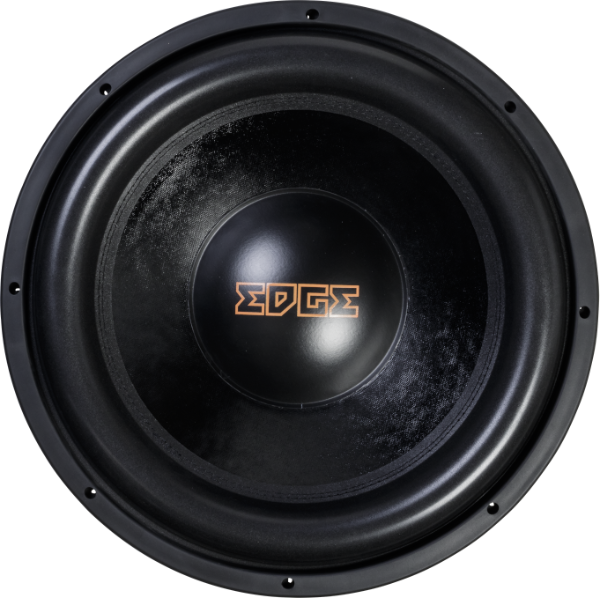

Model
EDGE EDS15D2-E7
Rating
DIAM
15"
FS(Hz)
34.6
VAS(l)
47.1
QTS
0.32
PWR(W)
3600
SPL(dB)
89.3
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34.6
Vas(l)
47.1
Qts
0.32
Qms
3.58
Qes
0.351
Bl(Tm)
30.6
Mms(gr)
381
Cms(mm/N)
0.055
Rms(kg/s)
23.16
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
77705
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3600
RMS Power(W.)
1800
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.54
Sensitivity(dB) 1-W
89.3
Sensitivity(dB) 2.8-V
92.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
