Model

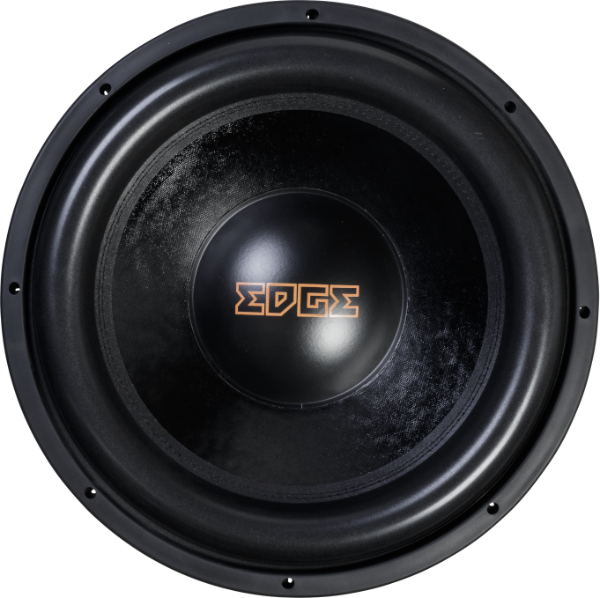

EDGE EDS18D1-E7
Rating
DIAM
18"
FS(Hz)
33.4
VAS(l)
47.1
QTS
0.24
PWR(W)
4000
SPL(dB)
90.2
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33.4
Vas(l)
47.1
Qts
0.24
Qms
3.73
Qes
0.257
Bl(Tm)
27.2
Mms(gr)
456
Cms(mm/N)
0.05
Rms(kg/s)
25.63
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
81498
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
4000
RMS Power(W.)
2000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.66
Sensitivity(dB) 1-W
90.2
Sensitivity(dB) 2.8-V
96.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
