Model

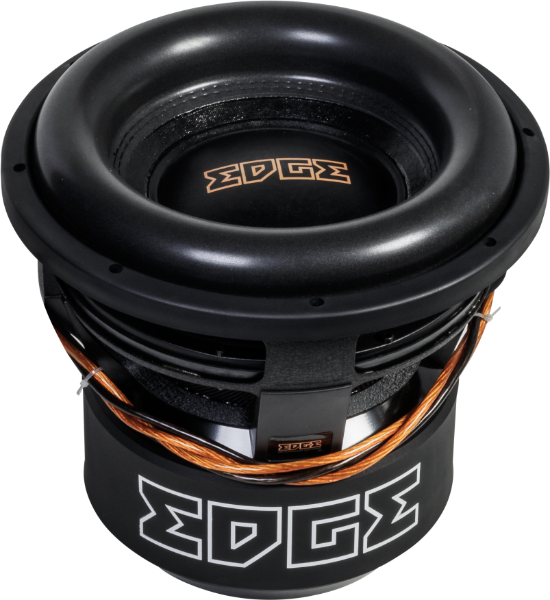

EDGE EDX12D1-E7
Rating
DIAM
12"
FS(Hz)
32.6
VAS(l)
22.8
QTS
0.32
PWR(W)
6000
SPL(dB)
85.4
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
32.6
Vas(l)
22.8
Qts
0.32
Qms
4.31
Qes
0.346
Bl(Tm)
18.1
Mms(gr)
325
Cms(mm/N)
0.073
Rms(kg/s)
15.45
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
46928
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
6000
RMS Power(W.)
3000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.4
Sensitivity(dB) 2.8-V
92.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
