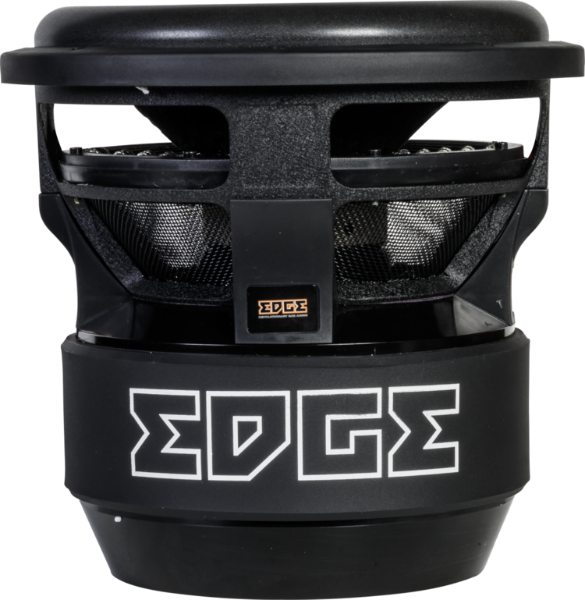

EDGE EDX12D1SPL-E7
EDGE EDX12D1SPL-E7
Model

EDGE EDX12D1SPL-E7

Rating
DIAM
12"
FS(Hz)
32.2
VAS(l)
22.1
QTS
0.32
PWR(W)
15000
SPL(dB)
85.2
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
32.2
Vas(l)
22.1
Qts
0.323
Qms
6
Qes
0.34
Bl(Tm)
20.1
Mms(gr)
343
Cms(mm/N)
0.712
Rms(kg/s)
11.48
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
470000
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
15000
RMS Power(W.)
5000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
91.7

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
240
Mounting Depth (mm)
280
Magnet Diameter (mm)
250

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
