Model

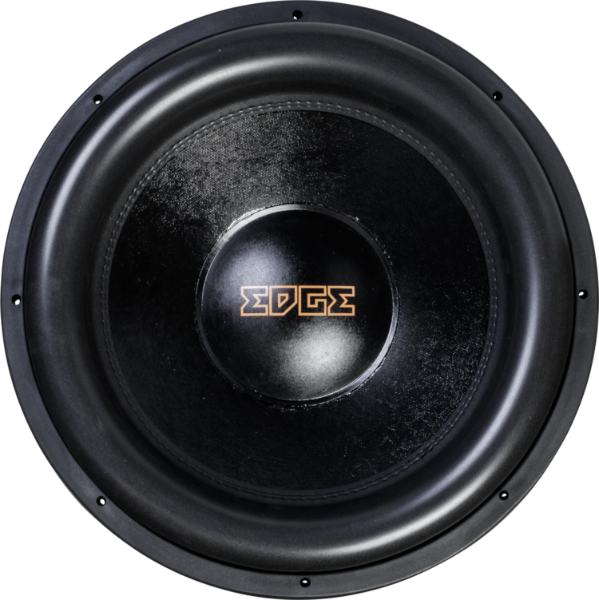

EDGE EDX18D1-E7
Rating
DIAM
18"
FS(Hz)
27.1
VAS(l)
136
QTS
0.31
PWR(W)
6000
SPL(dB)
90.9
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27.1
Vas(l)
136
Qts
0.312
Qms
3.8
Qes
0.34
Bl(Tm)
20.2
Mms(gr)
478
Cms(mm/N)
0.719
Rms(kg/s)
21.41
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
116000
Vd(l)
4.06
X-max(mm)
35
X-mech(mm)
50
General Parameters
Diameter (inch)
18
Max Power(W.)
6000
RMS Power(W.)
3000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.77
Sensitivity(dB) 1-W
90.9
Sensitivity(dB) 2.8-V
97.6
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
