Model

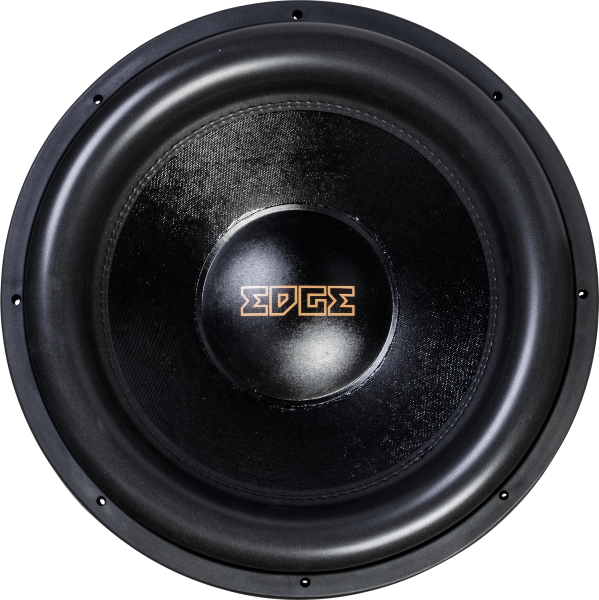

EDGE EDX18D1SPL-E7
Rating
DIAM
18"
FS(Hz)
25.7
VAS(l)
122.7
QTS
0.32
PWR(W)
10000
SPL(dB)
89.7
IMP(Ohm)
1x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
25.7
Vas(l)
122.7
Qts
0.319
Qms
5.09
Qes
0.34
Bl(Tm)
23.6
Mms(gr)
599
Cms(mm/N)
0.064
Rms(kg/s)
19.01
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
116000
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
18
Max Power(W.)
10000
RMS Power(W.)
5000
Number of Coils
2
Impedance Z-Nom(Ohm)
1
Reference efficiency η0(%)
0.59
Sensitivity(dB) 1-W
89.7
Sensitivity(dB) 2.8-V
95.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
