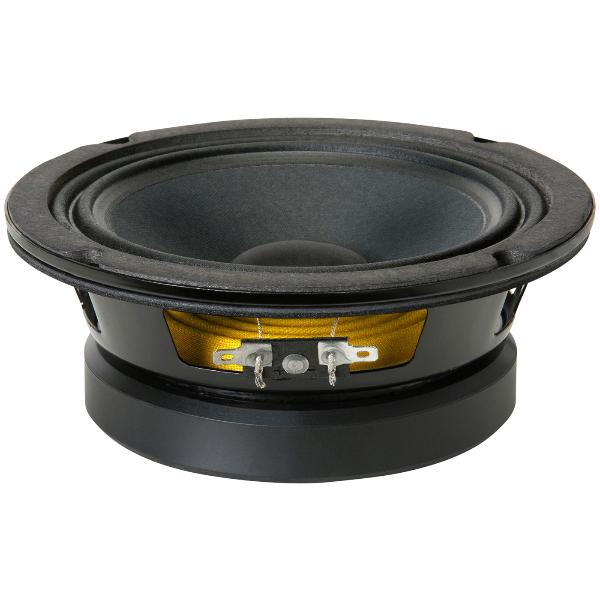

Eminence ALPHA-6A
Eminence ALPHA-6A
Model

Eminence ALPHA-6A

Rating
DIAM
6"
FS(Hz)
103
VAS(l)
5.8
QTS
0.54
PWR(W)
200
SPL(dB)
92.1
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
103
Vas(l)
5.8
Qts
0.54
Qms
5.68
Qes
0.6
Bl(Tm)
8
Mms(gr)
7
Cms(mm/N)
0.341
Rms(kg/s)
0.798
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
12670
Vd(l)
0.044
X-max(mm)
4
X-mech(mm)
0

General Parameters

Diameter (inch)
6
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
92.1
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0.41
Total Diameter (mm)
0
Cutout Diameter (mm)
144
Mounting Depth (mm)
71
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
