Model

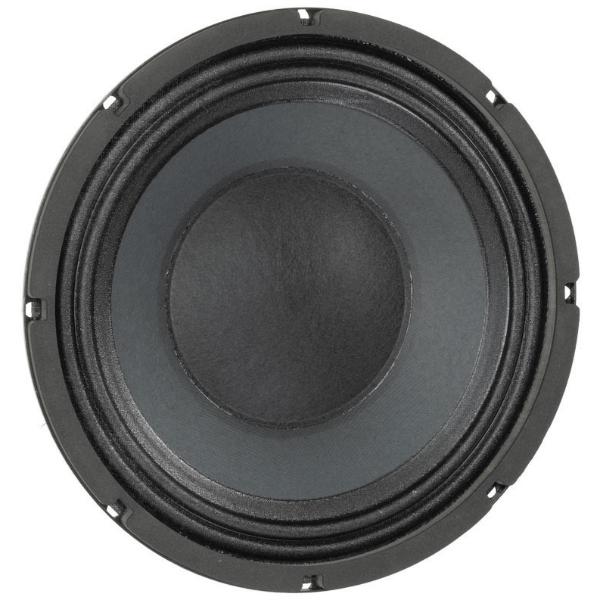

Eminence BASSLITE S2010
Rating
DIAM
10"
FS(Hz)
46
VAS(l)
63.4
QTS
0.31
PWR(W)
300
SPL(dB)
96.2
IMP(Ohm)
8x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
46
Vas(l)
63.4
Qts
0.31
Qms
4.16
Qes
0.34
Bl(Tm)
11.9
Mms(gr)
33
Cms(mm/N)
0.363
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
5
Sd(sq.mm)
35010
Vd(l)
0.14
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
300
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
96.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
230
Mounting Depth (mm)
108
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
