Model

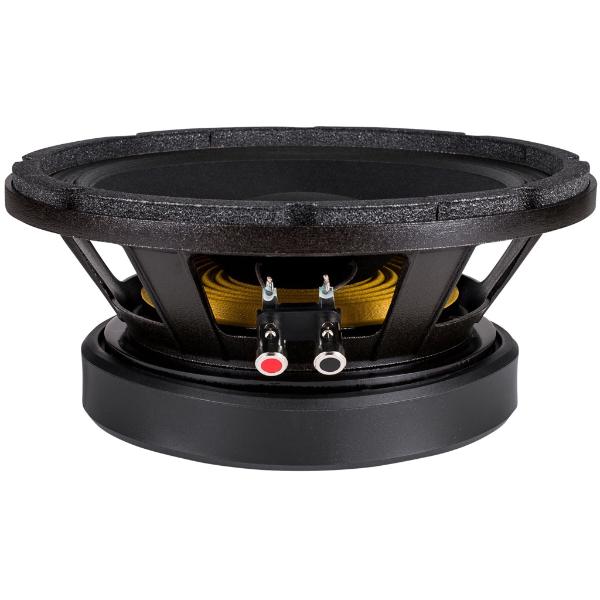

Eminence DELTA PRO 10MR-8
Rating
DIAM
10"
FS(Hz)
53
VAS(l)
61.447
QTS
0.23
PWR(W)
400
SPL(dB)
97.7
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
53
Vas(l)
61.4
Qts
0.23
Qms
6.77
Qes
0.238
Bl(Tm)
15.4
Mms(gr)
26
Cms(mm/N)
0.347
Rms(kg/s)
1.279
Le(mH)
0
Re(Ohm)
6.5
Sd(sq.mm)
35335
Vd(l)
0.046
X-max(mm)
1
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
400
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
97.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.727
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
113
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
