Model

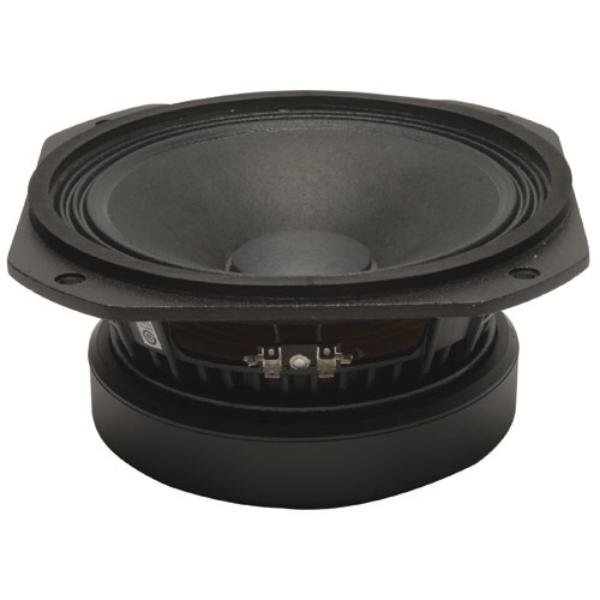

Eminence DELTA PRO-8A
Rating
DIAM
8"
FS(Hz)
69
VAS(l)
18.3
QTS
0.22
PWR(W)
450
SPL(dB)
96.1
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
69
Vas(l)
18.3
Qts
0.22
Qms
6.43
Qes
0.228
Bl(Tm)
14.1
Mms(gr)
19
Cms(mm/N)
0.28
Rms(kg/s)
1.281
Le(mH)
0
Re(Ohm)
5.5
Sd(sq.mm)
21467
Vd(l)
0.064
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
450
RMS Power(W.)
225
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
96.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1
Total Diameter (mm)
0
Cutout Diameter (mm)
187
Mounting Depth (mm)
95
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
