Model

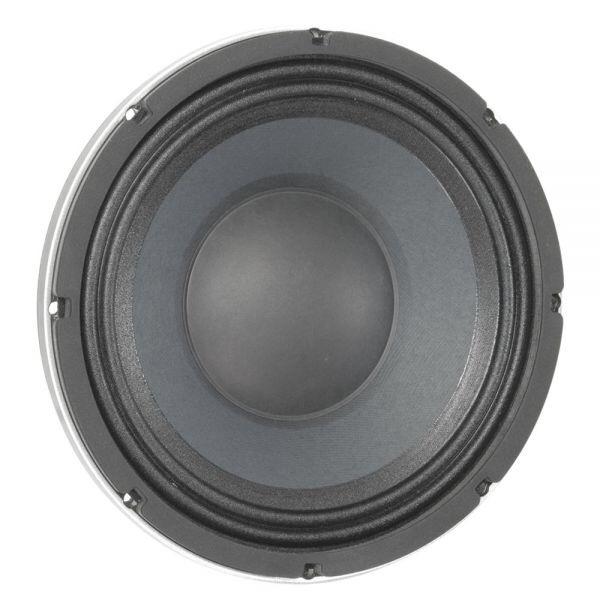

Eminence DELTALITE II 2510
Rating
DIAM
10"
FS(Hz)
53
VAS(l)
52.5
QTS
0.42
PWR(W)
500
SPL(dB)
94.2
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
53
Vas(l)
52.5
Qts
0.42
Qms
5.8
Qes
0.45
Bl(Tm)
10.6
Mms(gr)
31
Cms(mm/N)
0.291
Rms(kg/s)
1.78
Le(mH)
0.4
Re(Ohm)
4.9
Sd(sq.mm)
35673
Vd(l)
0.147
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
1.67
Sensitivity(dB) 1-W
94.2
Sensitivity(dB) 2.8-V
96.4
Mounting Information
Speaker Displacement (l)
0.74
Total Diameter (mm)
260
Cutout Diameter (mm)
232
Mounting Depth (mm)
125
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
