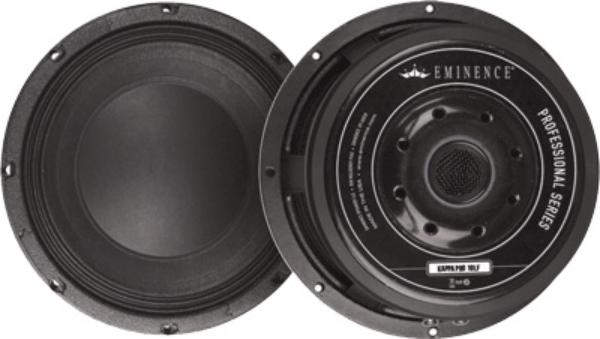

Eminence KAPPA PRO-10LF
Eminence KAPPA PRO-10LF
Model

Eminence KAPPA PRO-10LF

Rating
DIAM
10"
FS(Hz)
39
VAS(l)
73.1
QTS
0.28
PWR(W)
1200
SPL(dB)
93.6
IMP(Ohm)
8x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
39
Vas(l)
73.1
Qts
0.28
Qms
8.97
Qes
0.289
Bl(Tm)
14.5
Cms(mm/N)
0.362
Rms(kg/s)
1.257
Le(mH)
0
Mms(gr)
46
Vd(l)
0.272
Sd(sq.mm)
37722
X-max(mm)
7
X-mech(mm)
0
Re(Ohm)
5.4

General Parameters

Diameter (inch)
10
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
93.6
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
1.897
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
127
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Vented, BP6

Speaker response
